Description

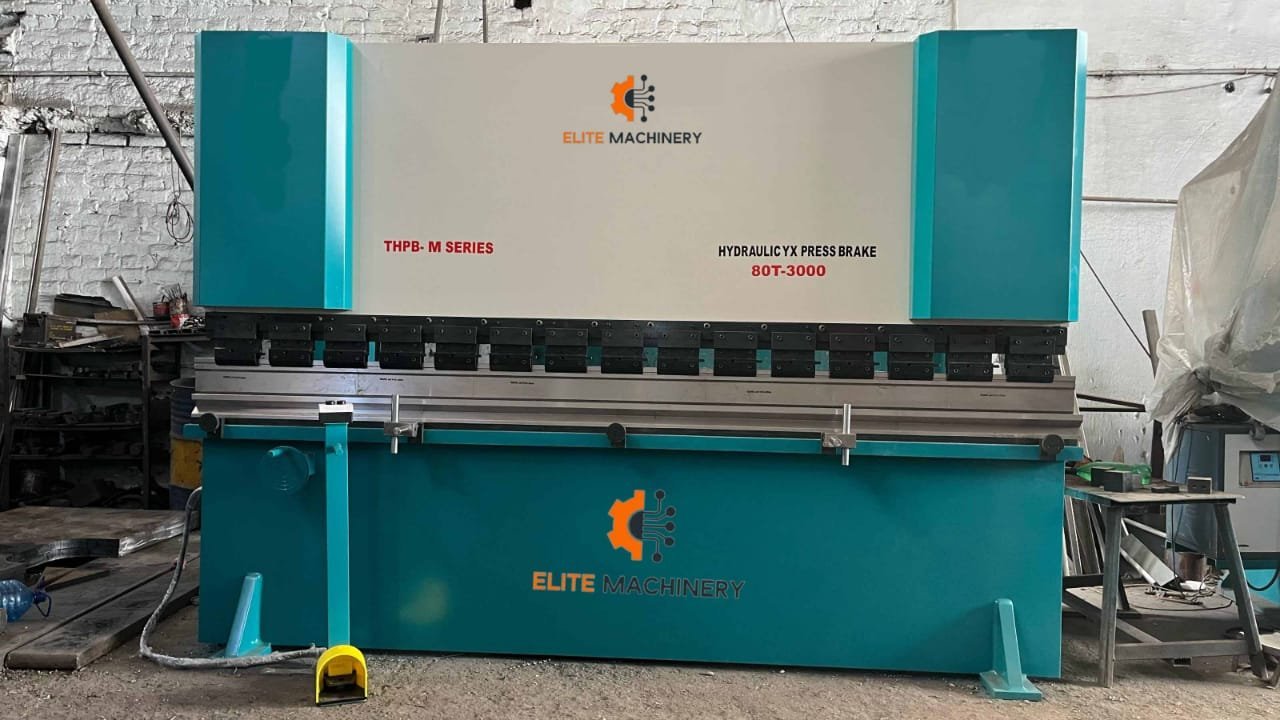

Elite Machine Tools (EMT) offers advanced Hydraulic Press Brake Machines designed for precision bending, forming, folding, and shaping of sheet metal components. Powered by a high-efficiency hydraulic system, these machines provide exceptional bending accuracy, smooth operation, and consistent performance for industrial fabrication applications.
Manufactured with a heavy-duty steel frame and precision-machined components, the Hydraulic Press Brake Machine ensures maximum rigidity, stability, and long service life. It is widely used in sheet metal fabrication, electrical panel manufacturing, automobile industries, HVAC production, stainless steel fabrication, and engineering workshops.
Built for continuous production environments, the machine delivers superior bending quality, high productivity, and reliable performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Machine Type | Hydraulic Press Brake Machine |
| Bending Capacity | 30 Ton – 1000 Ton |
| Bending Length | 1250 mm – 8000 mm |
| Operation Type | Hydraulic |
| Stroke Length | 100 mm – 500 mm |
| Throat Depth | 200 mm – 600 mm |
| Daylight Opening | 300 mm – 800 mm |
| Ram Control | Hydraulic Cylinder Driven |
| Back Gauge System | Manual / Motorized / CNC |
| Main Motor Power | 3 HP – 50 HP |
| Control System | NC / CNC Optional |
| Machine Structure | Heavy Duty Steel Fabricated |
| Power Source | Electric |
| Condition | New |
Key Features
✔ High-precision sheet metal bending
✔ Powerful hydraulic drive system
✔ Heavy-duty steel frame construction
✔ Smooth and vibration-free operation
✔ Excellent bending accuracy and repeatability
✔ Manual, NC, and CNC control options
✔ Adjustable back gauge system
✔ Low maintenance and energy-efficient performance
✔ Long service life and industrial reliability
Applications
- Sheet Metal Fabrication
- Electrical Panel Manufacturing
- Stainless Steel Fabrication
- HVAC Duct Manufacturing
- Automobile Component Production
- Industrial Equipment Manufacturing
- Engineering Workshops
- General Metal Forming Applications
Available Models
- 30 Ton Hydraulic Press Brake
- 50 Ton Hydraulic Press Brake
- 100 Ton Hydraulic Press Brake
- 200 Ton Hydraulic Press Brake
- CNC Hydraulic Press Brake
- Heavy Duty Industrial Press Brake
Brand
Elite Machine Tools (EMT)
Origin
Made in India
Customization
Available as per customer specifications, tonnage capacity, bending length, CNC requirements, and production applications.
