Description

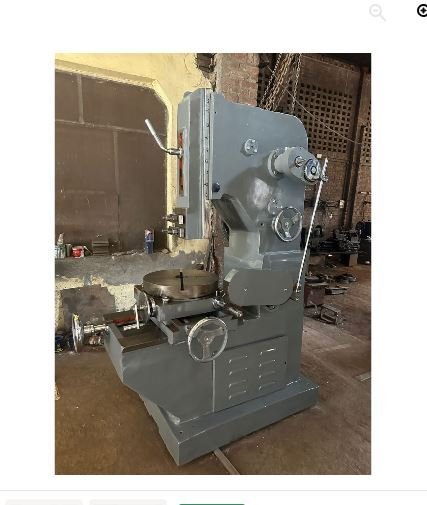

Elite Machine Tools (EMT) offers robust and precision-engineered Heavy Duty Slotting Machines designed for machining internal and external slots, keyways, grooves, splines, and irregular surfaces with high accuracy. Built for demanding industrial applications, these machines provide exceptional rigidity, smooth operation, and reliable performance for heavy-duty metal cutting operations.
Manufactured using high-grade cast iron and precision-machined components, the Heavy Duty Slotting Machine ensures superior machining accuracy and long service life. The machine is ideal for engineering workshops, gear manufacturing units, tool rooms, heavy fabrication industries, and machine-building applications.
Designed for continuous industrial use, it delivers high productivity, excellent surface finish, and consistent machining results.

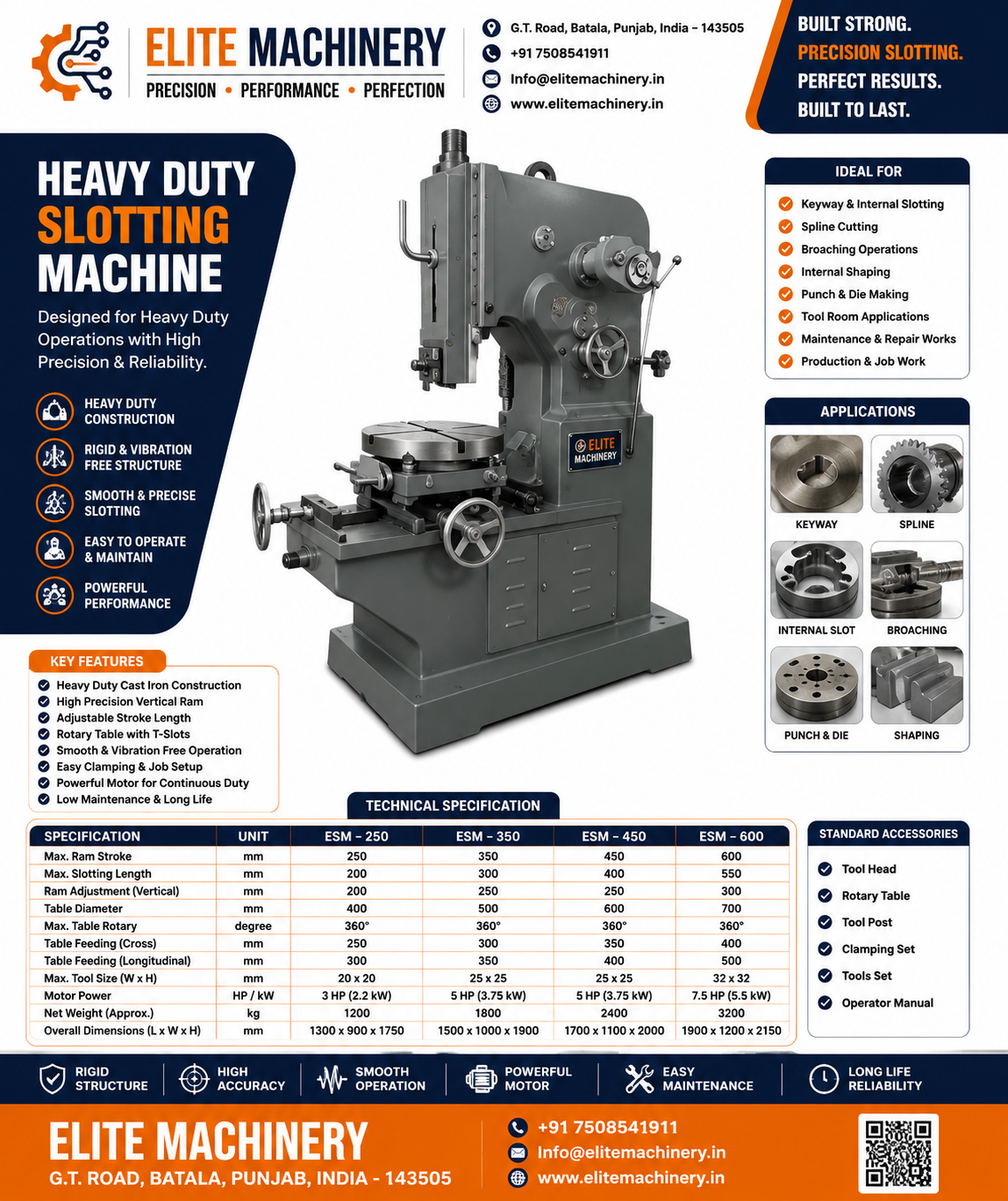

Technical Specifications
| Parameter | Details |
|---|---|
| Machine Type | Heavy Duty Slotting Machine |
| Maximum Stroke Length | 300 mm – 600 mm |
| Table Diameter | 600 mm – 1200 mm |
| Table Travel (Longitudinal) | 400 mm – 800 mm |
| Table Travel (Cross) | 300 mm – 600 mm |
| Rotary Table Movement | 360° Rotation |
| Number of Strokes | 20 – 120 Strokes/Min |
| Main Motor Power | 3 HP – 10 HP |
| Tool Head Swivel | Adjustable |
| Feed System | Automatic / Manual |
| Machine Structure | Heavy Duty Cast Iron |
| Operation | Mechanical |
| Power Source | Electric |
| Condition | New |
Key Features
✔ Heavy-duty construction for industrial applications
✔ High precision slotting and keyway cutting
✔ Smooth and vibration-free operation
✔ Adjustable stroke length mechanism
✔ Rotary table for versatile machining operations
✔ Automatic feed system for increased productivity
✔ Excellent surface finish and dimensional accuracy
✔ Low maintenance and long service life
✔ Suitable for continuous production work
Applications
- Keyway Cutting
- Internal & External Slotting
- Gear Manufacturing
- Spline Machining
- Tool Rooms
- Engineering Workshops
- Heavy Fabrication Industries
- Machine Building Applications
Available Models
- 12 Inch Heavy Duty Slotting Machine
- 18 Inch Heavy Duty Slotting Machine
- 24 Inch Heavy Duty Slotting Machine
- Industrial Slotting Machine
- Heavy Duty Production Slotter
Brand
Elite Machine Tools (EMT)
Origin
Made in India
Customization
Available as per customer specifications, stroke length, and machining requirements
